DC to AC Inverters

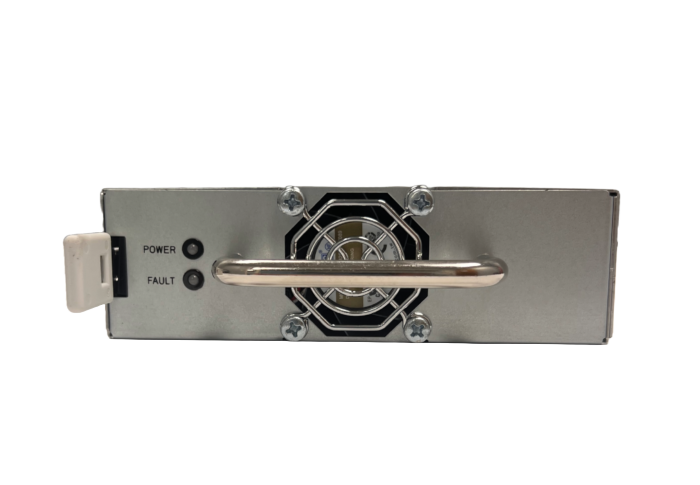

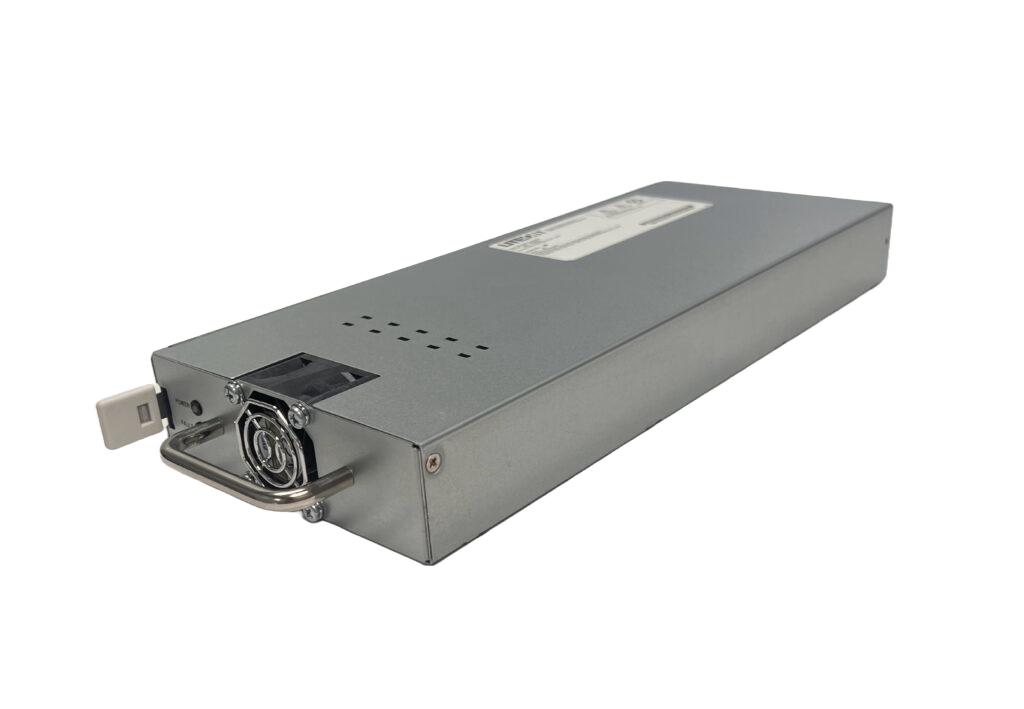

Power Innovations International's inverter modules convert high voltage DC input power to pure sine wave AC power, and are configurable via command from a shelf controller. Multiple inverter modules can be arranged to operate in parallel or to be phase-shifted to create 3-phase power systems in a power shelf, and support Modbus RS-485 communication. With demonstrated near-continuous uptime and ease of installation, these inverters are easily implemented into data center environments. Pii offers 3-slot power shelves for all modules, as well as shelf controllers and power management controllers.
Multiple configurable output voltages
Provide constant power, constant current, and constant voltage

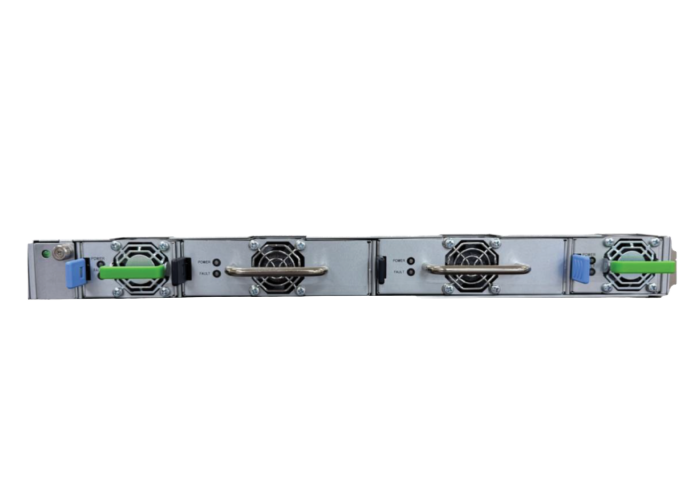

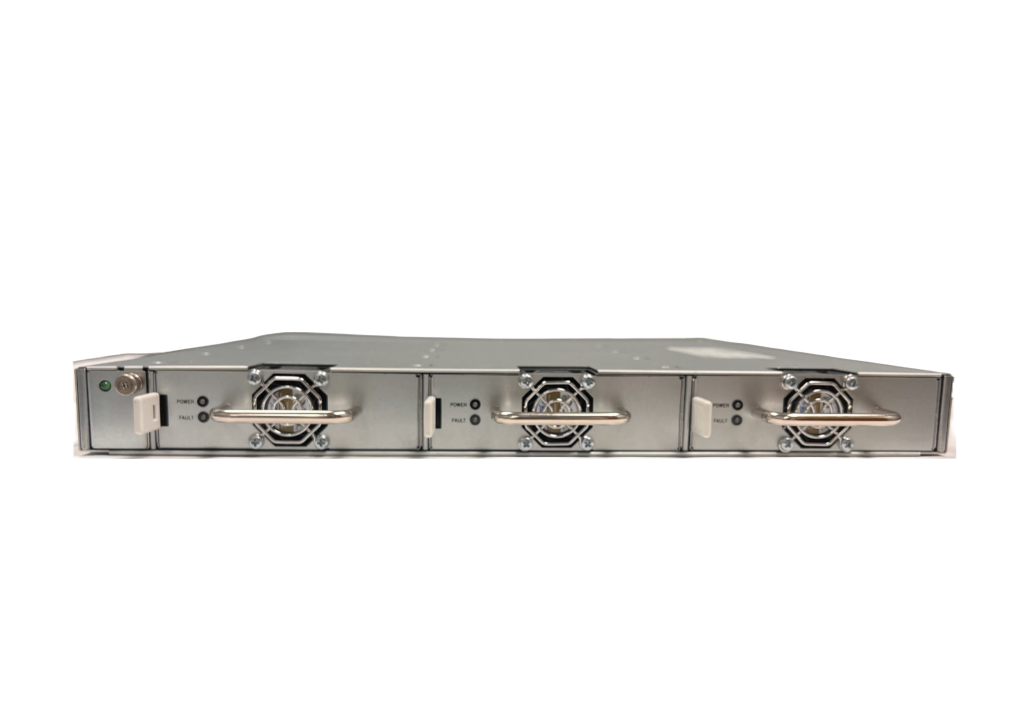

Parallelable in power shelf for highly scalable three-phase output
Capable of high-voltage rectification with BESS
System Components
Explore the modular architecture of Pii’s DC to AC conversion ecosystem. Select a component below to build your solution.
Configurable via command from shelf controller
120, 230, 240, or 277 V single-phase output
120/240 V split-phase capability
Capable of grid forming or grid following
Voltage source mode: pure sinewave output, 3% THD
Current source mode: complying with IEEE 1547
208, 240, 415, 480 V three-phase (with power shelf)
