No 480V? No Problem!

30 & 60 kW DC Chargers

Pii’s pedestal and wall-mounted DC quick chargers provide up to 60kW of continuous charging output, either in single-gun or dual-gun models. These products also offer highly flexible and field configurable Vac input power, which allows accepting the most common distribution voltages, thus reducing overall infrastructure and construction costs.

Up to 60kW continuous output configuration

Single-gun or dual-gun execution options

Highly flexible power input with no de-rating

Industry-standard connectivity for remote updates

EVQC030 Datasheet EVQC060 Datasheet EVFC060 Datasheet
Contact Sales

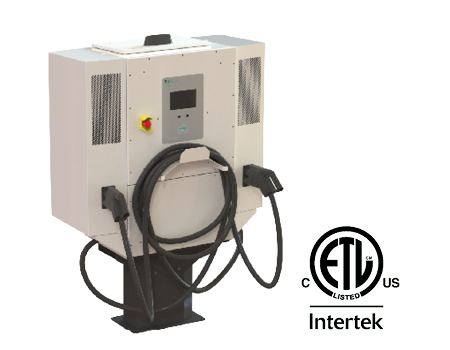

EVQC030 DC Quick Charger EVQC060 DC Quick Charger EVFC060 Dual-Gun Quick Charger
EVQC030 Hardware Layout

Hardware Overview

Select the sections below to explore the engineering advantages of the DC Quick Charger architecture.

Field-Replaceable Power Modules +
The product line features ultra-high reliability LITEON power modules with demonstrated mean time between failure (MTBF) exceeding one million hours. This modular power conversion architecture enables near continuous operational uptime while virtually eliminating maintenance requirements.
Flexible Multi-Voltage Input +
Designed for streamlined integration, the chargers accept multi-voltage inputs—including 240Vac single-phase, 208/240Vac three-phase, and 480Vac Wye—in a single product. This highly flexible, field-configurable architecture requires no de-rating and reduces installation costs by avoiding additional upstream equipment.
Closed-Loop Heat Exchanger +
A precision heat exchanger isolates the internal airstream from ambient air. The closed-loop thermal management system prevents dust and moisture from contacting internal power electronics.
NEMA 3S Enclosure +
Engineered with a rugged IP54/NEMA 3S rated weather-proof enclosure, providing superior protection against falling dirt, rain, sleet, snow, and windblown dust for reliable outdoor operation.

Product Spotlight

Watch our comprehensive deployment video overview of the DC Quick Charger family in operation.

Highly flexible power input with no de-rating

Field configuration patent pending

Field-replaceable power modules

IP54/NEMA 3S rated weather-proof enclosure

Multiple secure payment and authentication methods

Remote diagnostic upgrades via over-the-air firmware updates

Datasheets

EVQC030 Datasheet

Datasheet • PDF

EVQC060 Datasheet

Datasheet • PDF

EVFC060 Datasheet (Dual Cable)

Datasheet • PDF
Manuals & Guides

EVQC030 Installation & Operation Manual

Manual • PDF

EVQC060 Installation & Operation Manual

Manual • PDF
Application Notes

EVQC030 Charger Wire & Switch Size Pairings

Application Note • Link
Family Level Resources

EV Product Guide

Guide • PDF

EV Brochure

Brochure • PDF

Ready to Purchase?

Explore flexible financing options or find an authorized national distributor near you.

Authorized Distributors Financing Options
